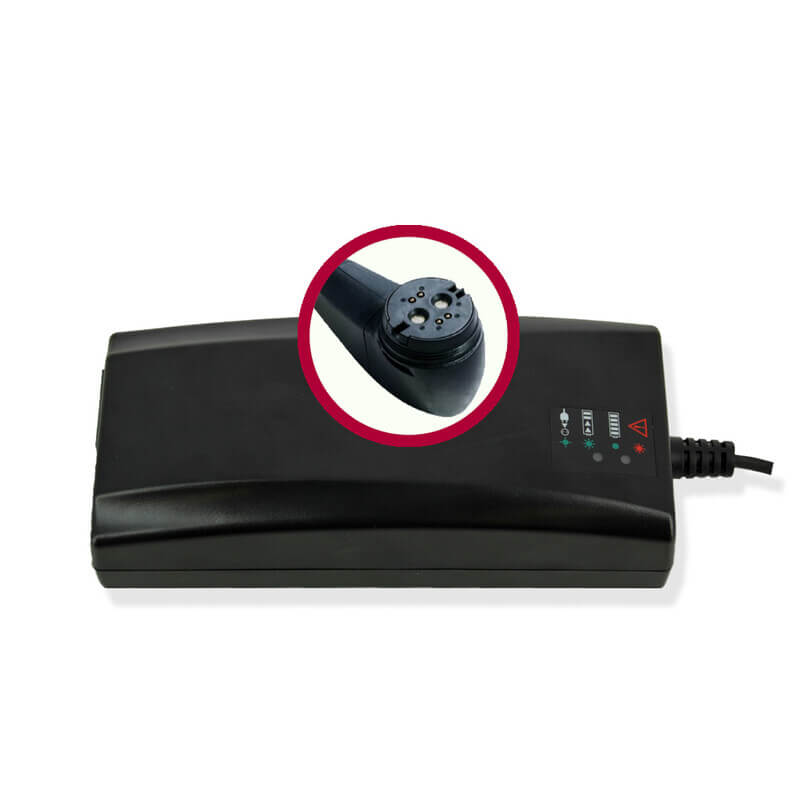

BMZ E-bike Charger Rosenberger 90° Plug 36V 4,5A 36348

Magnetic charger with Rosenberger with 90° angle plug for electric bikes.

• Equipped with automatic power cut-off after charging
• Fast charging thanks to 4.5A charging current – charges your battery in just 2-3 hours!

Compatibility

The charger is compatible with the following batteries:

• 19381 / Alber Xion / Lin Bus / 15,50Ah
• 19382 / Alber Xion / Lin Bus / 11,00Ah
• 19383 / Alber Xion / Lin Bus / 15,50Ah
• 19384 / Alber Xion / Lin Bus / 11,00Ah
• 22804 / Alber Xion / Lin Bus / 11,25Ah
• 22938 / Alber Xion / Lin Bus / 14,50Ah
• 24558-1GP / Impulse 2 / CAN / 16,75Ah
• 24558-1GP / Integrale / CAN / 16,75Ah
• 24892 / Alber Xion / Lin Bus / 14,25Ah
• 25628-1GP / Impulse 3 / CAN / 14,25Ah
• 25629-1GP / Impulse 3 / CAN / 16,75Ah
• 25945 / Alber Xion / Lin Bus / 16,75Ah
• 27371-01 / Impulse 2 / CAN / 11,25Ah
• 27371-01 / Offroad / CAN / 11,25Ah
• 27372-01 / Impulse 2 / CAN / 13,00Ah
• 27372-01 / Offroad / CAN / 17,50Ah
• 30860-00 / Shimano Eco / Uart / 17,00Ah
• 30860-00 / Shimano Eco / Uart / 17,25Ah
• 30880-00 / Impulse 2 / CAN / 17,25Ah
• 30880-00 / Shimano Eco / CAN / 17,25Ah
• 31120-00 / Impulse 2 / CAN / 13,00Ah
• 31120-00 / Shimano Eco / CAN / 13,00Ah
• 31121-00 / Shimano Eco / Uart / 13,00Ah
• 31121-00 / Shimano Eco / Uart / 13,00Ah
• 31648-01 / Impulse 2 / CAN / 16,75Ah
• 31648-01 / Impulse 3 / CAN / 16,75Ah
• 31649-01 / Impulse 2 / CAN / 16,75Ah
• 31649-01 / Integrale / CAN / 16,75Ah
• 36170-01 / Impulse 2 / CAN / 17,25Ah
• 36170-01 / Shimano Eco / CAN / 17,25Ah
• 36171-01 / Shimano Eco / Uart / 17,00Ah
• 36171-01 / Shimano Eco / Uart / 17,25Ah
• 36173-01 / Integrale / CAN / 17,00Ah

Charging modes

• Standby: green LED blinks slowly
• Charging: green LED blinks
• End of charging: green LED lights up
• Charging error: red LED blinks
