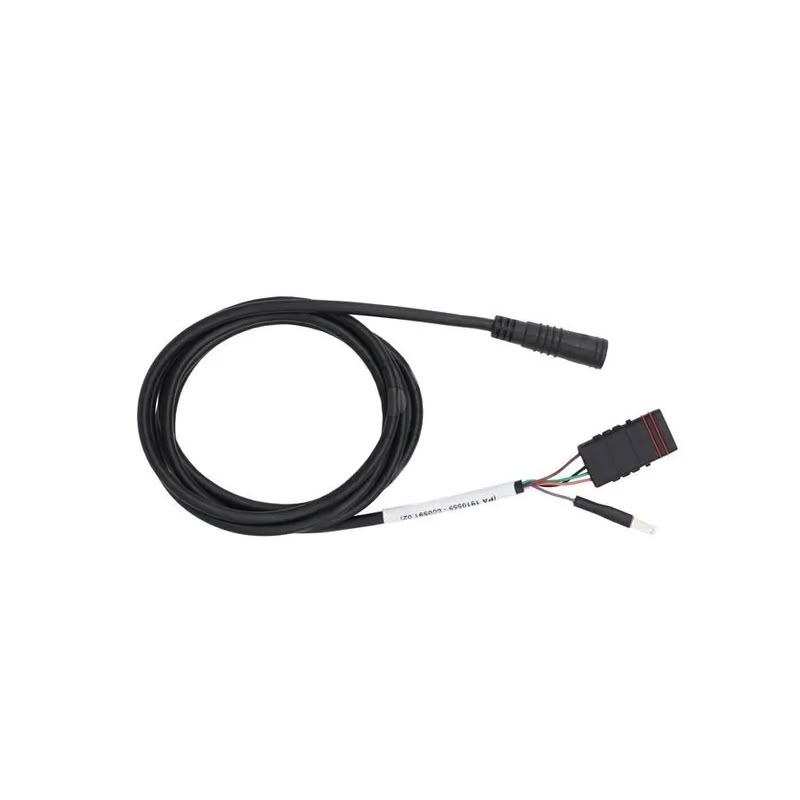

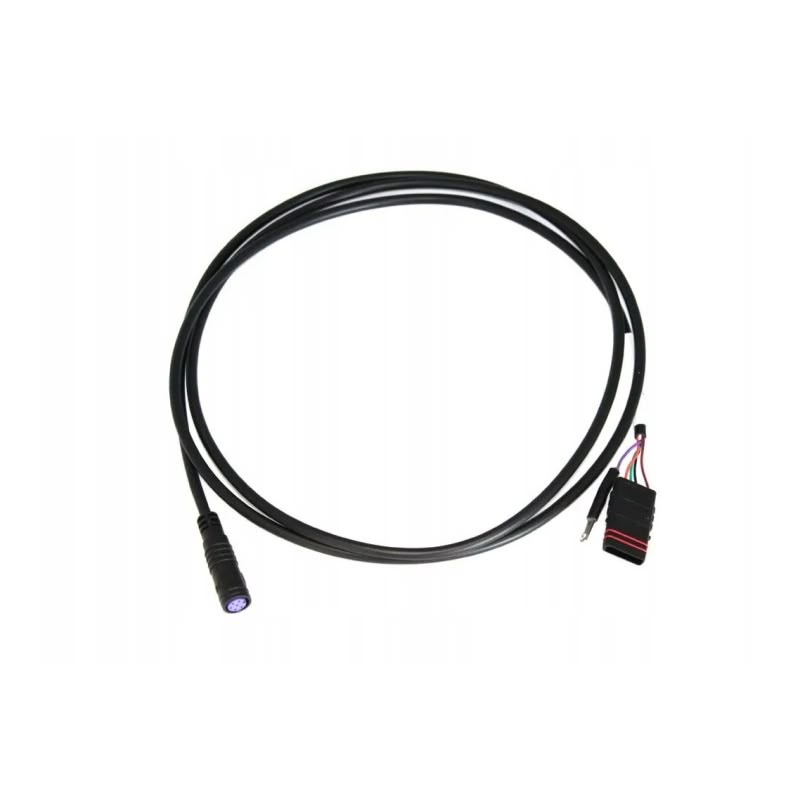

Genuine Brose communication cable (C92565-101) designed to connect the central motor to the display mounted on the handlebars of an electric bike. It ensures reliable transmission of data on riding parameters, battery charge level and assistance modes. The cable is designed for e-bike systems in which the wake-up function is located directly on the battery.
Precision connectors and original build quality
The cable is fitted with a flat, 4-pin plug for connection to the motor and a standard purple HIGO connector for connecting the display. The factory-matched components guarantee full compatibility with Brose and BMZ drives, as well as watertight connections and resistance to vibration and moisture when riding in adverse weather conditions.
Choosing the right cable – external wake-up function
The C92565-101 variant is intended exclusively for bicycles where the e-bike system is activated by a button located directly on the battery (system with a 4-pin connector). For bicycles where activation takes place via the panel/display on the handlebars, the 5-pin version of the cable is required.
Specifications:
| Brand / Manufacturer | Brose / BMZ |
| Model / Manufacturer Part Number (MPN) | C92565-101 |
| Component type | Motor–display connection cable |
| Cable length | 1300 mm (1,3 m) |
| Connector on the motor side | 4-pin flat plug |
| Connector on the display side | Purple HIGO plug |
| Wake-up support | External (button on the battery) |
| Installation location | Frame / inside the frame |
| Weight | 0,05 kg |
| Condition | New (Original spare part) |
