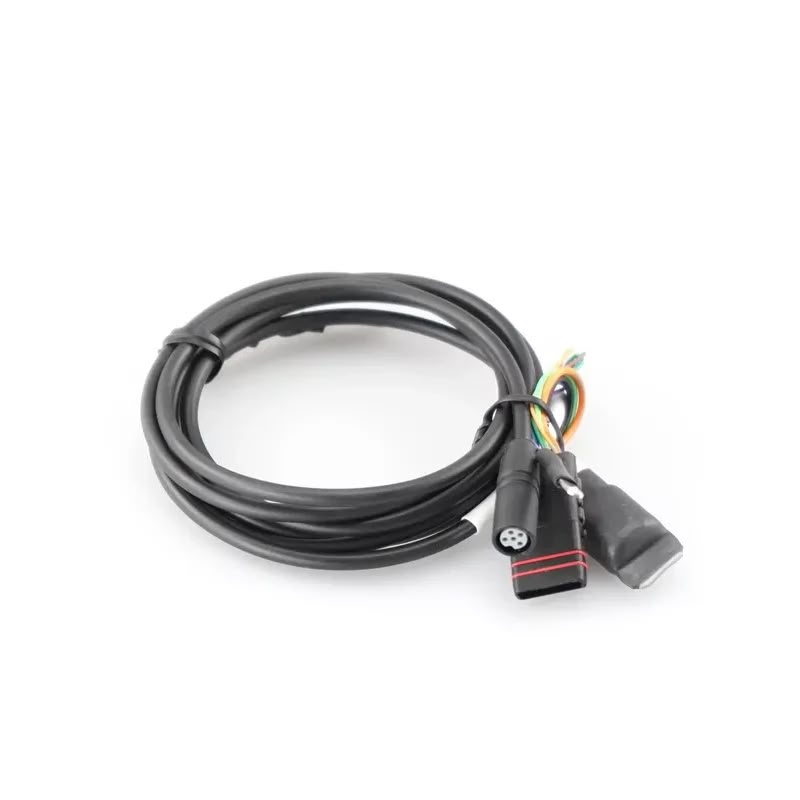

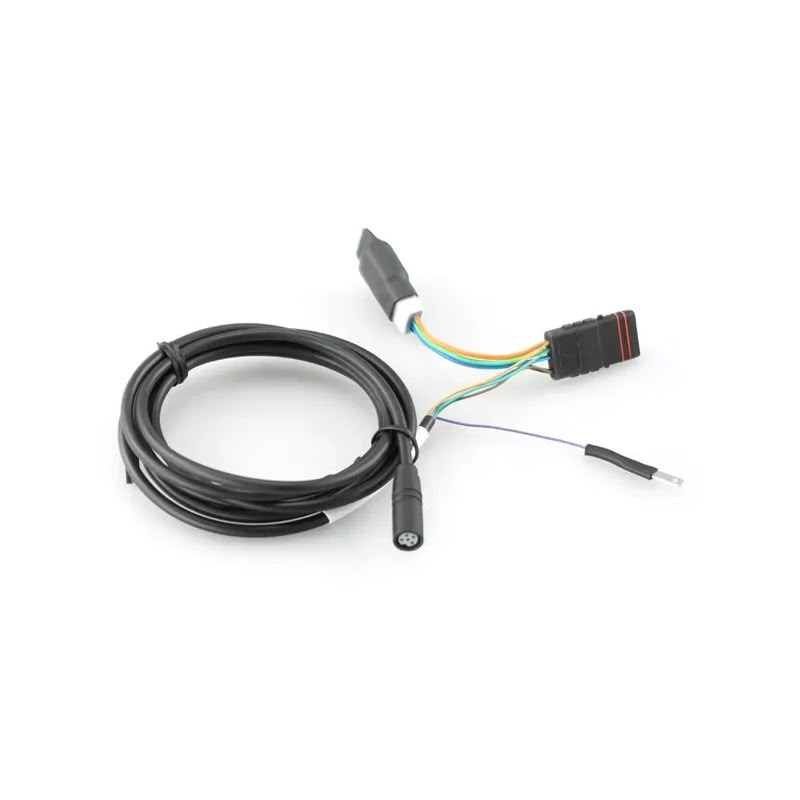

Genuine Brose display cable, product number 500255, designed for Brose drive systems compatible with BLOKS Gen. 2 displays. The cable also features a Wake cable, enabling the system’s wake-up function.
Genuine cable for the Brose system
The cable is designed to connect Brose system components to a BLOKS Gen. 2 display or control panel. It is a genuine Brose part, number 500255, intended for use in compatible electric bikes.
Compatibility with BLOKS Gen. 2 and the Wake function
The cable is compatible with BLOKS Gen. 2 solutions and selected BMZ system components. The cable features a Wake wire and a JST connector designed for Connect C modules.
Specifications:
| Manufacturer | Brose |
| Cable length | 1350 mm |
| SKU | 500255 |
| Product type | Display cable |
| System | Brose / BLOKS Gen. 2 |
| Function | Wake / Wake Up |
| Additional connector | JST – Connect C |
| Net weight | ~0,03 kg |
