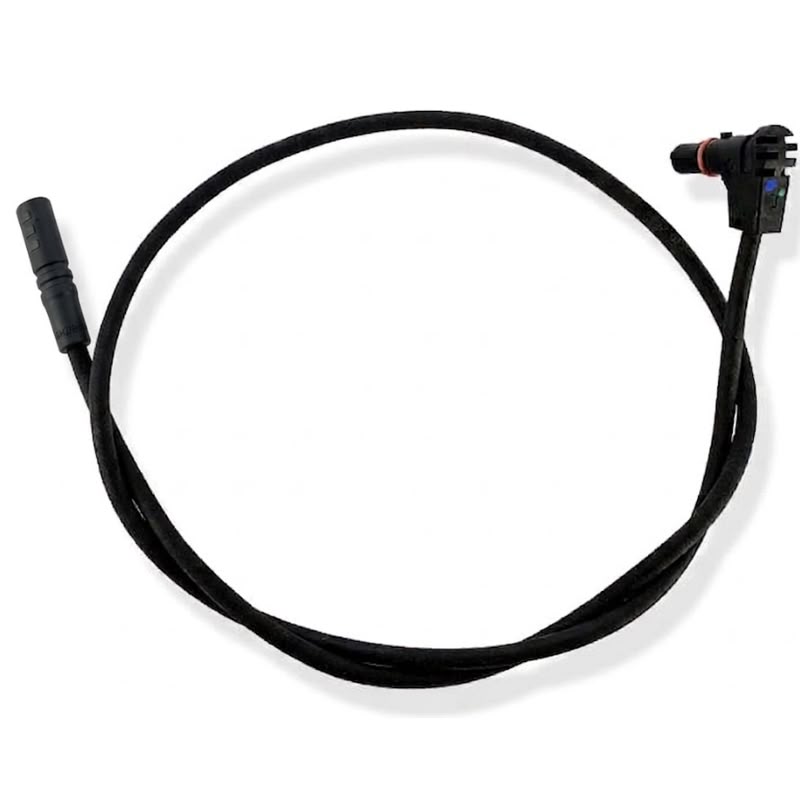

An original, full-length connection cable, 115 cm long, designed for electric bikes with a Brose drive unit and the BMZ system. It is used to connect the drive unit directly to the displays and control panels of the newer generation (Bloks Gen.2 / DP Gen.2).
Connecting the motor to the Gen2 display

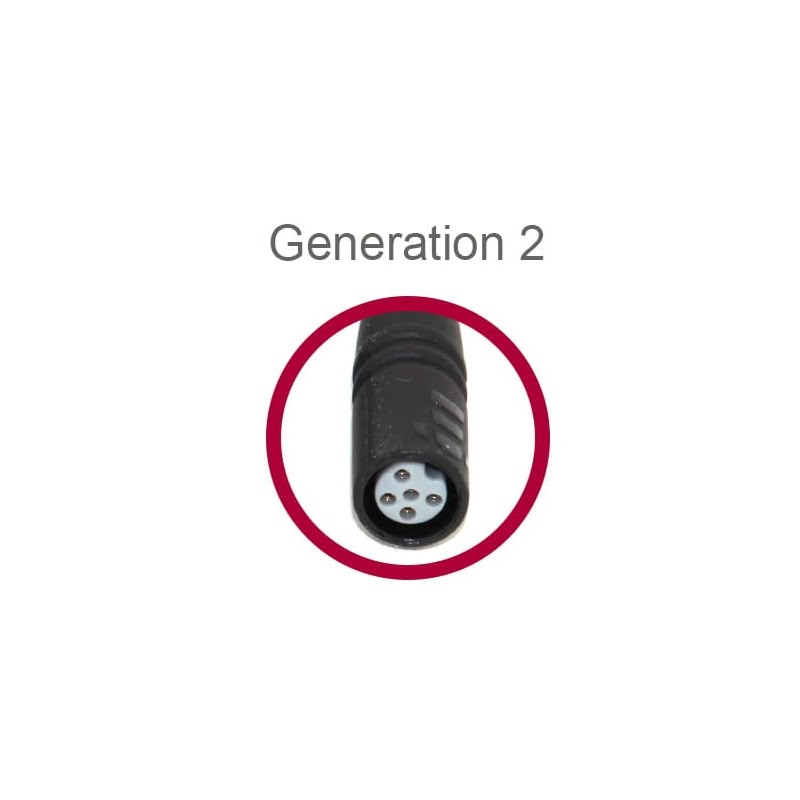

One end of the cable features a sealed, angled plug designed for the Brose motor socket (with a red O-ring seal), whilst the other end has a second-generation female connector (Gen 2 – grey 5-pin insert). This ensures direct and reliable CAN signal transmission between the drive unit and the handlebar-mounted control panel.
Length 115 cm for installation inside the frame
The length of 115 cm (1150 mm) allows the cable to be routed freely inside the frame tubes (from the motor at the bottom bracket to the handlebars) whilst maintaining a safe margin for handlebar movement. Suitable for most e-bikes in sizes M, L and XL.
Specifications:
| Brand / Manufacturer | Brose / BMZ |
| Cable length | 115 cm (1150 mm) |
| Part type | Display cable (Motor to Display Cable) |
| Motor-side connector | Angled with integrated O-ring (Brose) |
| Handlebar-side connector | Bloks / DP Generation 2 (female, 5-pin, grey insert) |
| Cable routing | Internal (within the frame) |
| Net weight | ~0,03 kg |
