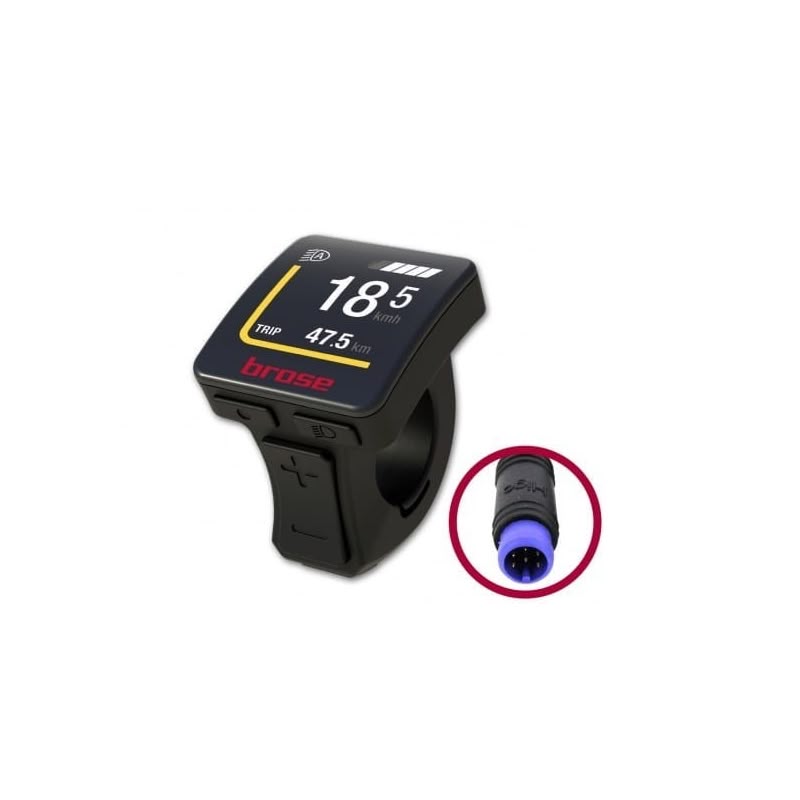

A compact, colour TFT display (1.5″) with an integrated remote control, designed for electric bikes with a Brose drive system. It provides a comprehensive overview of riding parameters and convenient control of e-bike functions without the need to fit a separate controller to the handlebars.
A clear TFT screen and full control in one place
The all-in-one design combines the display with ergonomic buttons in a single housing. The curved screen reduces glare, ensuring excellent visibility on sunny days. The 6-button panel allows for quick switching between assistance modes (Eco, Tour, Sport, Turbo), control of the lighting and activation of the Walk Assist function.
Wireless connectivity and IPX7 water resistance
The Bluetooth 5.0 module and CAN bus enable wireless connectivity with the Brose mobile app and system diagnostics. The IPX7-rated housing guarantees full resistance to rain and mud, whilst the universal mount allows installation on either the left or right side of a standard 22.2 mm diameter handlebar.
Specifications:
| Brand / Manufacturer | Brose / BMZ |
| Model / MPN | Display Allround HMI / E41230 |
| EAN code | 4058331000042 |
| Screen type | 1.5″ colour TFT (240 × 240 px) |
| Communication | Bluetooth 5.0, High-Speed CAN |
| Mounting | 22.2 mm handlebar (left or right-hand side) |
| Water resistance rating | IPX7 |
| Net weight / Voltage | ~50 g / 12 V |
