SpeedBox 3.0 for Bikes with Brose Engine Specialized

SPECIFICATION

Activation: WALK function / + – + –
Maximum speed: no limits
Screen view: clear speed value
Speed limit setting: YES
Compatible with motors:

• Brose SPECIALIZED (except SL models)
  For SL models, use SpeedBox 3.0 for Specialized
• Brose S-MAG
• Brose S
• Brose T
• Brose C
• Brose T-ALU

Not compatible with motors:

• Brose S Mag FIT

Not compatible with e-bikes:

• Without a connector in the display port (usually only have a plug)

Not compatible with:

• Enviolo Automatiq
• SpeedBox App

If you want to update your e-bike’s firmware, first uninstall SpeedBox from the e-bike, update the firmware, then reinstall SpeedBox.

Third-generation smart product with the ability to set e-bike speed limits.

SpeedBox 3.0 allows you to freely set the speed limiter on your e-bike. After installing the device, the e-bike’s display will show real data such as maximum speed, average speed, daily distance traveled, and range.

How does SpeedBox 3.0 work?

Our product is easy to use. Activation can be done on your bike’s screen. After activation, the WALK function will briefly display a speed of 9.9 km/h (6.2 mph) on the screen. From this moment, you can ride without speed limits – 40 km/h, 50 km/h, or even over 60 km/h.

Reactivating the WALK function will deactivate the tuning. The screen will show a speed of 2.5 km/h (1.6 mph), and the 25 km/h speed limit will be active again. The bike will work the same as before the SpeedBox installation.

If the bike doesn’t have the WALK function, activation is done by pressing the + – + – buttons. You deactivate SpeedBox the same way.

You can set the maximum speed by toggling through the following modes: TURBO – TRAIL – ECO – OFF – ECO – TRAIL – TURBO. After this, the current speed limit will appear on the screen. Switching the maximum speed is done by briefly activating the WALK function or turning the wheel 360°. A speed of 1.5 km/h corresponds to a 15 km/h limit, 2.0 to 20 km/h, 2.5 to 25 km/h, 3.0 to 30 km/h, and 9.9 to 99 km/h. The last displayed limit after five seconds will be saved.

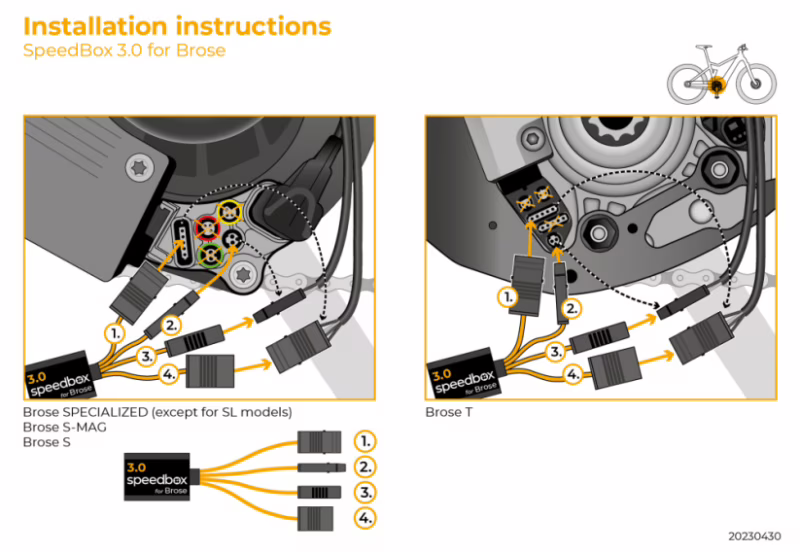

Installation

We use color-coded plugs with a key for mounting SpeedBox to your bike, making the installation process really simple. Additionally, we’ve prepared instructions and tutorial videos so that any customer can install SpeedBox independently. If you encounter any problems during installation, you can always reach out to us for assistance.

If you are installing SpeedBox on a brand-new bike, make sure you have ridden at least 1 kilometer on it first.

Detailed installation information can be found here.

Warning

We warn that using tuned bikes may be illegal in some countries. The manufacturer is not responsible for any damages resulting from using the SpeedBox product. Electric bikes with SpeedBox cannot be used on public roads or bike paths. Electric bikes equipped with SpeedBox should only be used on private property and at your own risk. Installing SpeedBox may void your e-bike’s warranty.
